Heating Element Holder Type K-1

Please login or register to see prices

ZIRCAR Ceramics’ Type K-1 Heating Element Holders are used to secure and support the terminals of MoSi₂ Heating Elements in applications where the elements are installed from the inside of a furnace chamber.

Technical Data Sheet

Please LOGIN or REGISTER to see our pricing

Item#: D10061, K-1 Element Holder Category:

Description

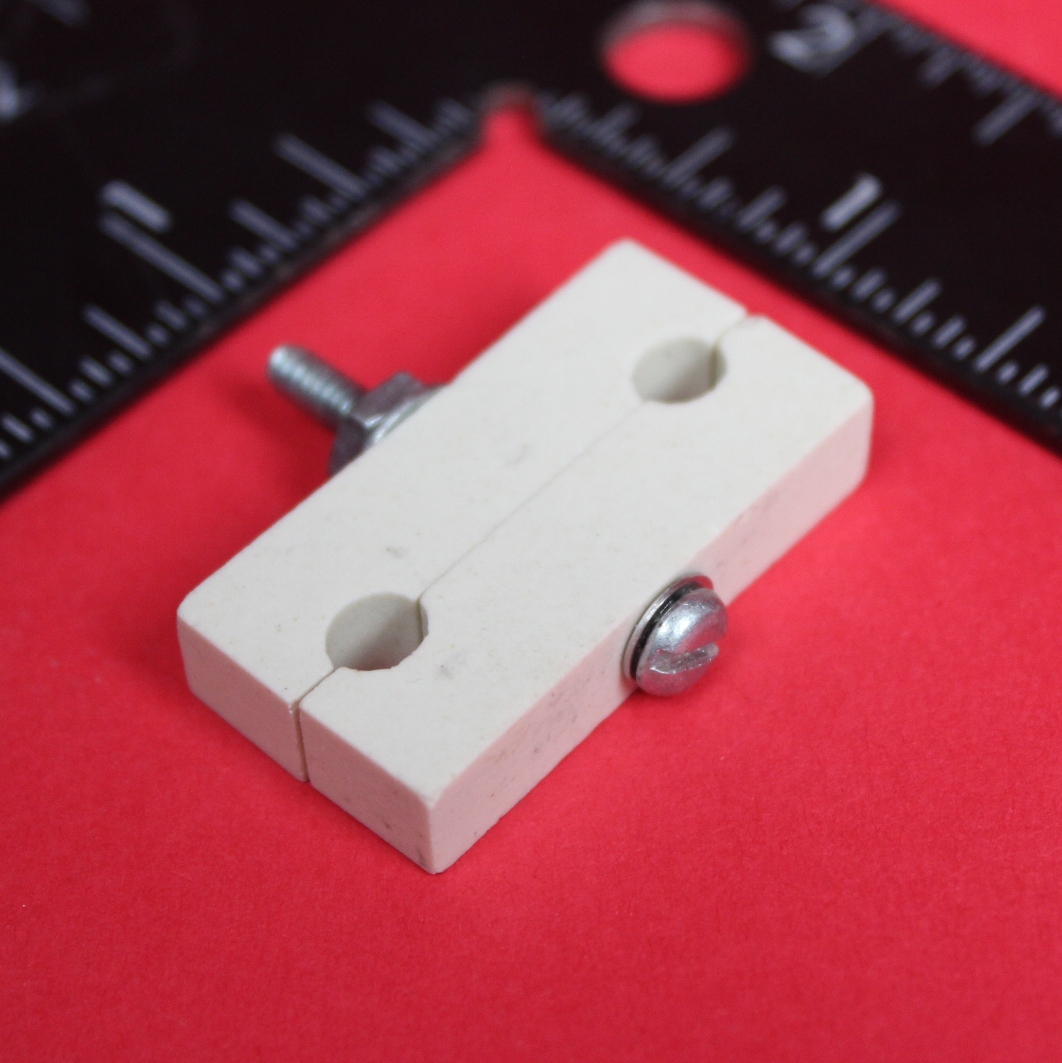

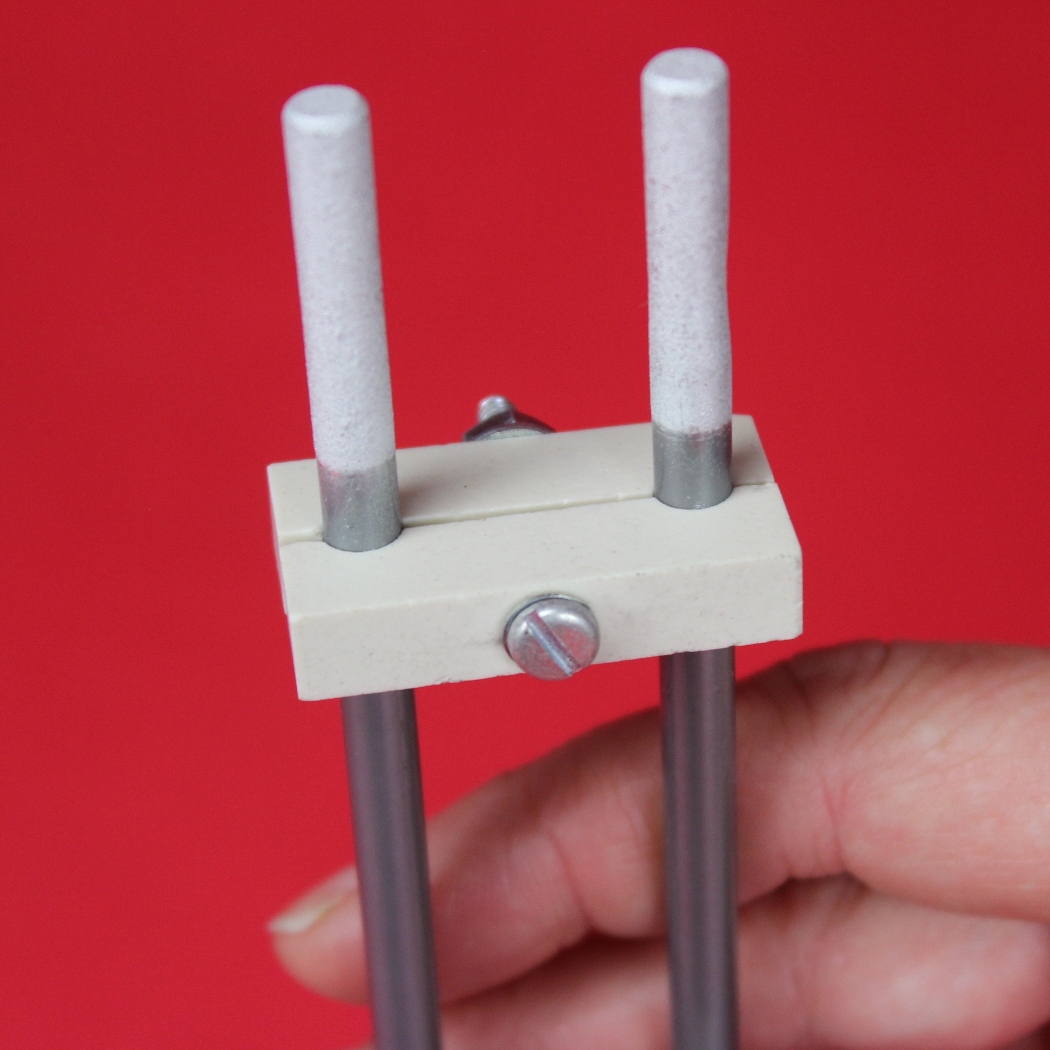

ZIRCAR Ceramics’ Type K-1 Heating Element Holders are made of high-density-alumina ceramics and corrosion-resistant hardware. They are used to secure and support the terminals of MoSi₂ Heating Elements in applications where the elements are installed from the inside of a furnace chamber. K-1 Element Holders are designed for use on elements with 6mm-diameter terminals with center-to-center spacing of 25mm (1.0”).

Additional information

Weight 1 lbs
Dimensions 2 × 2 × 0.75 in
