Furnace Insulation Module Type FIM

Furnace Insulation Module Type FIM

Please login or register to see prices

ZIRCAR Ceramics’ Furnace Insulation Modules Type FIM are engineered, pre-assembled insulation systems that provide superior performance in rapid-cycle low-mass furnace applications. Manufactured on a custom basis, FIM Furnace Insulation Modules enable OEM Thermal Process Equipment Manufacturers, as well as End User Customers, to solve their most unique and challenging furnace chamber applications.

Technical Data Sheet

Description

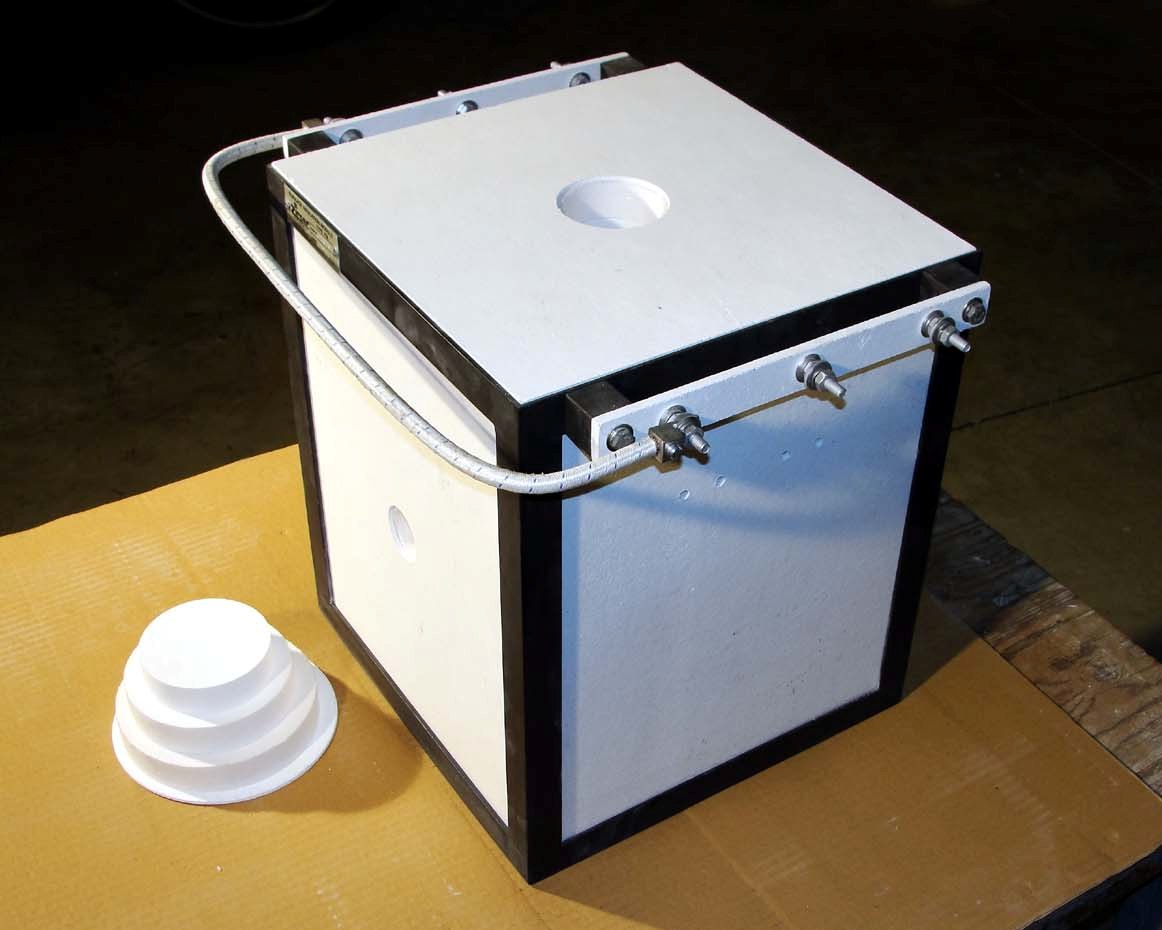

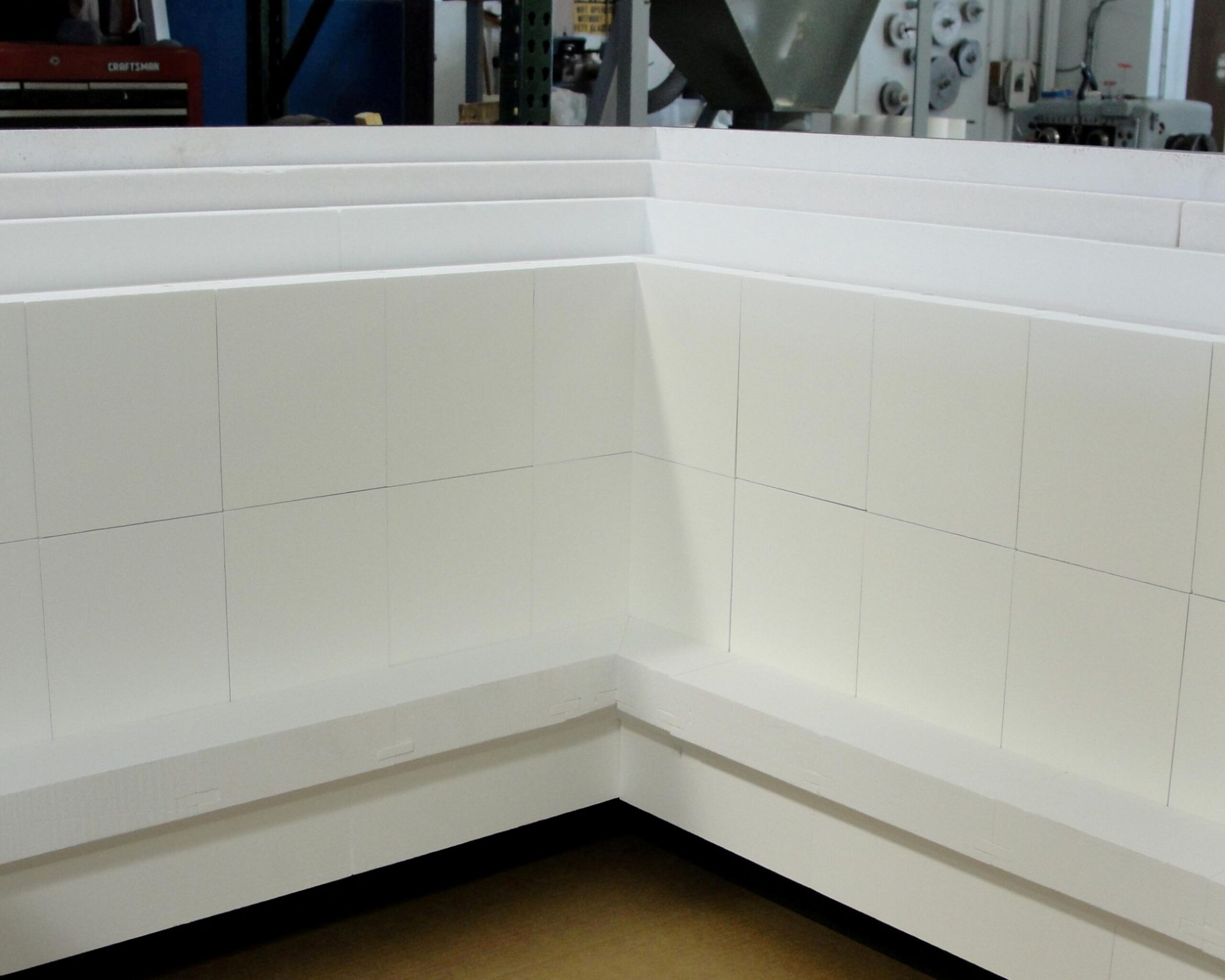

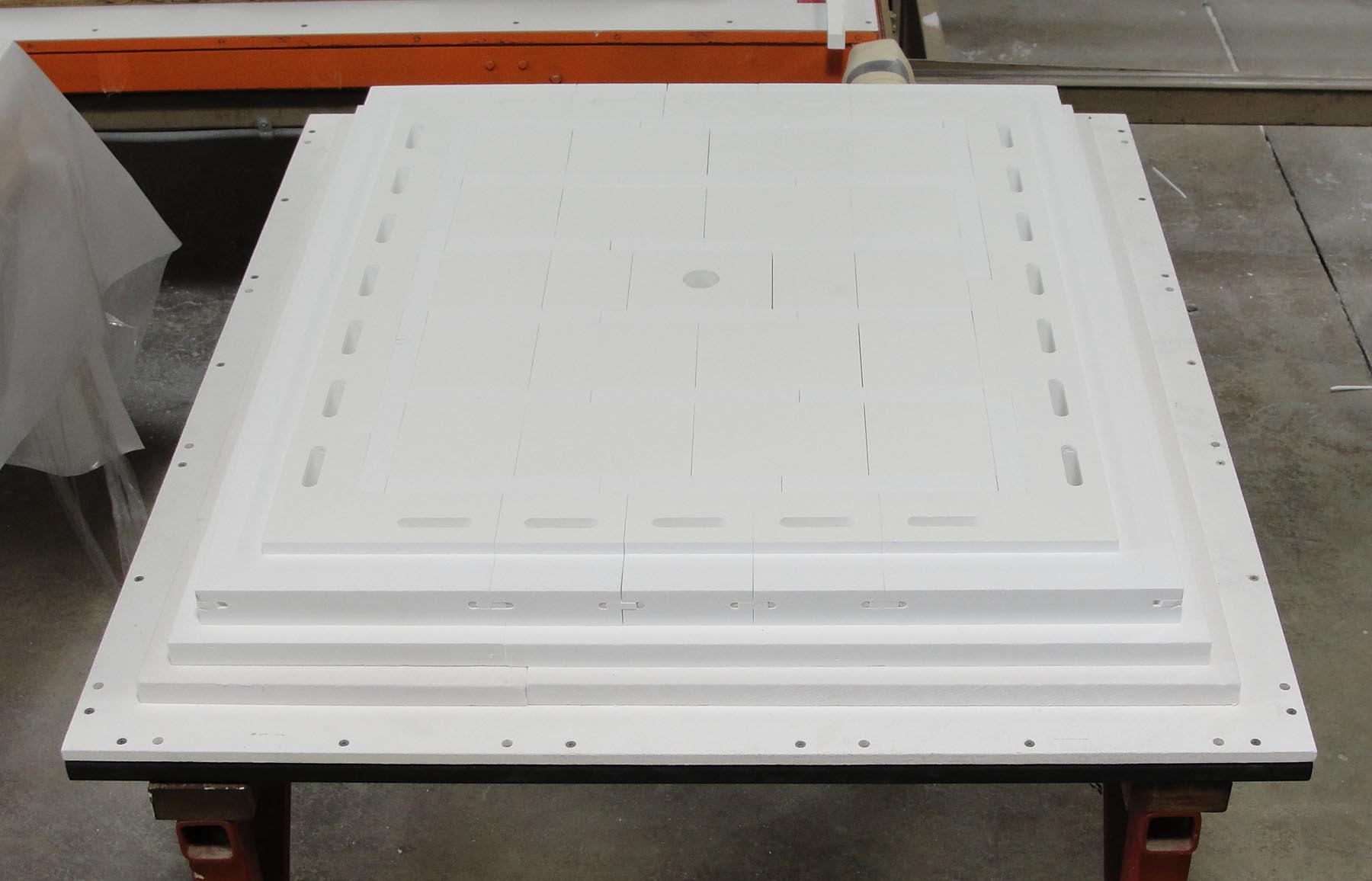

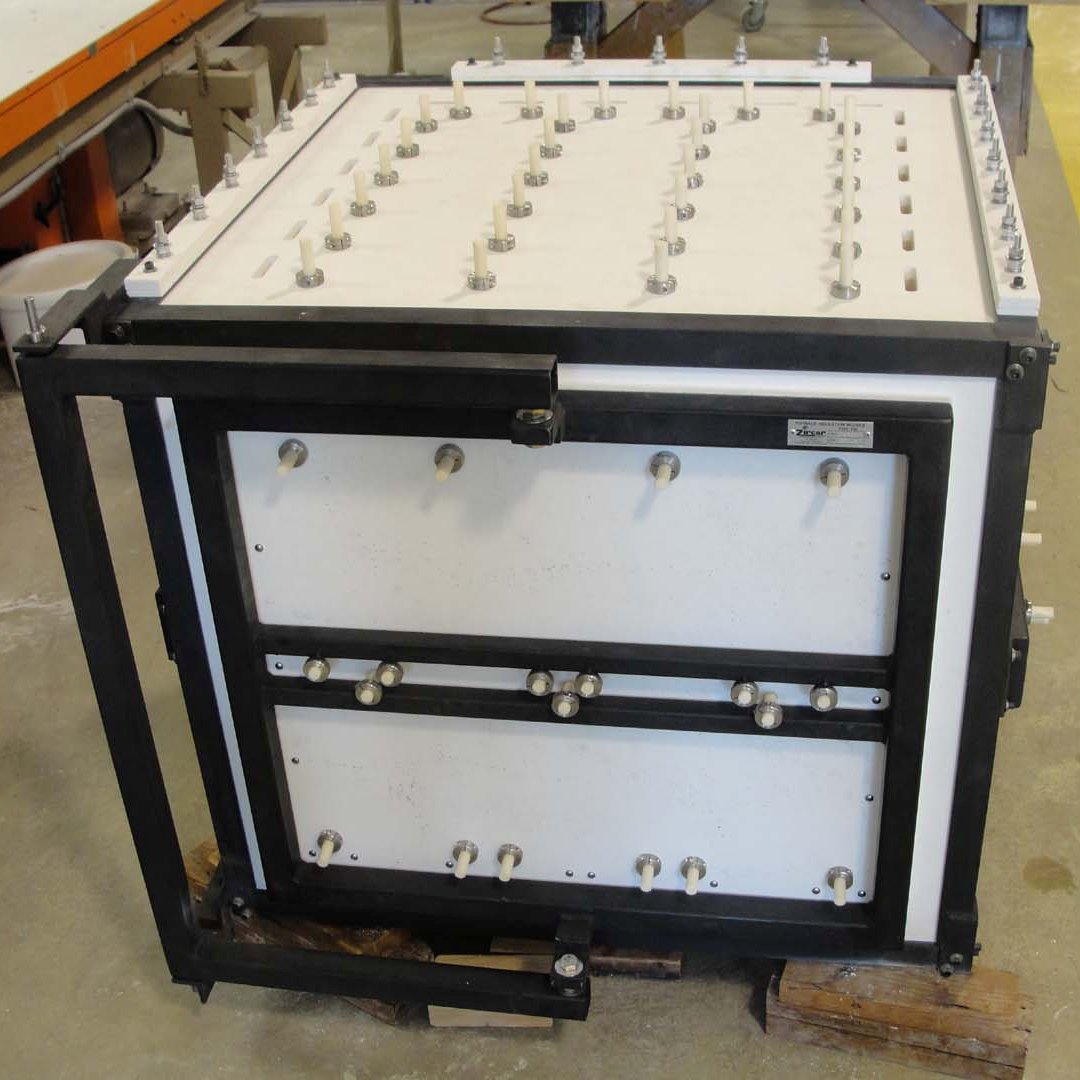

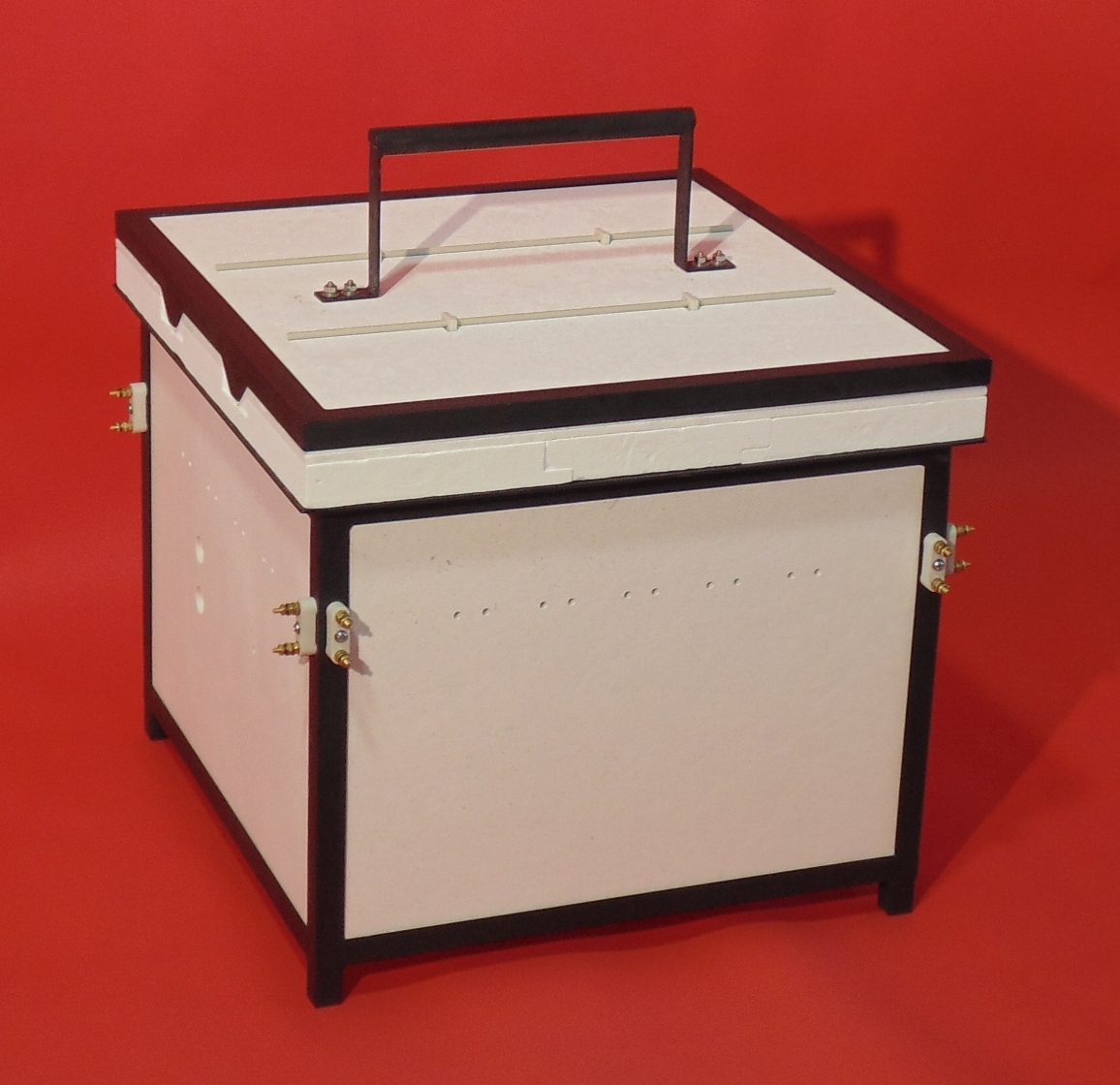

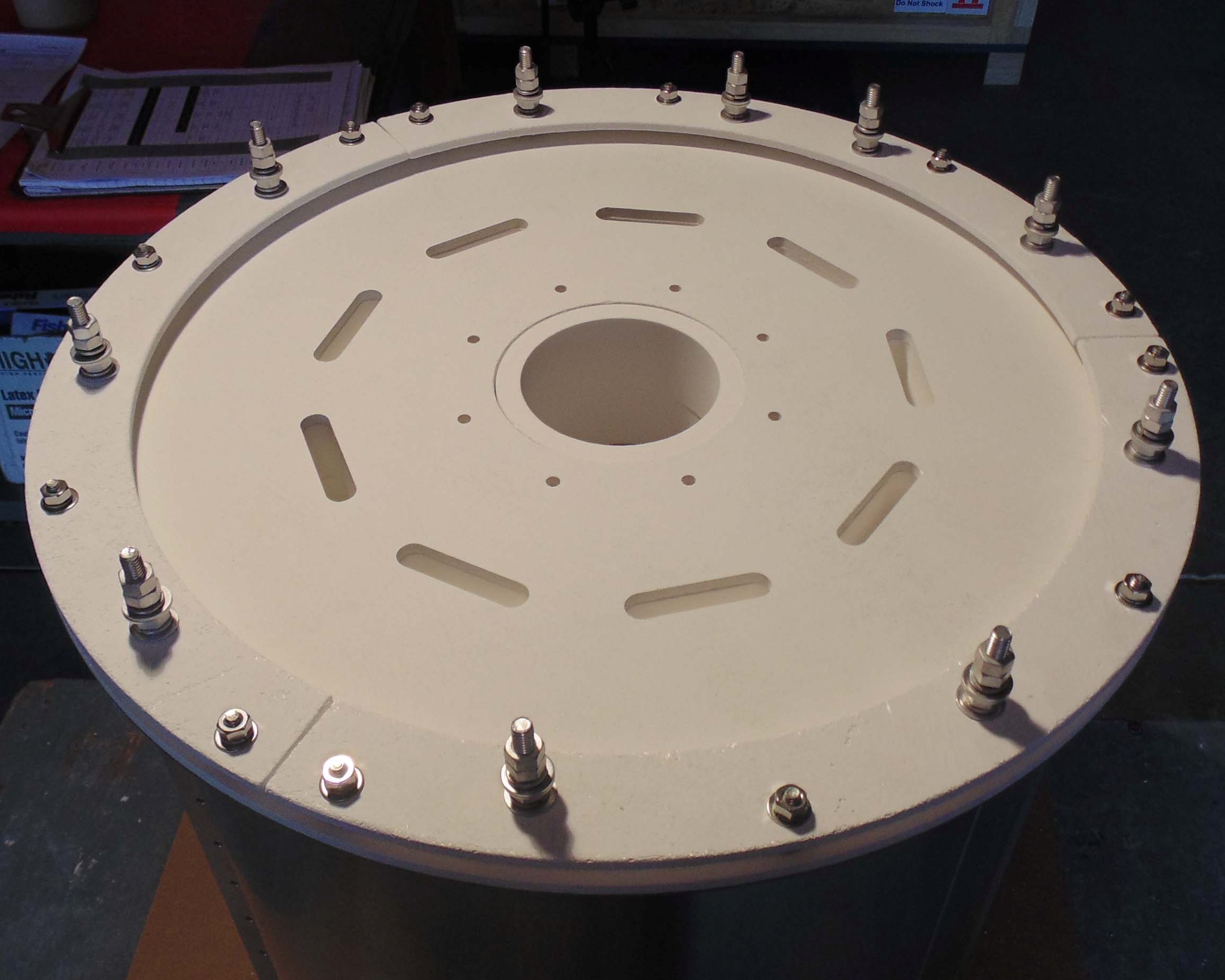

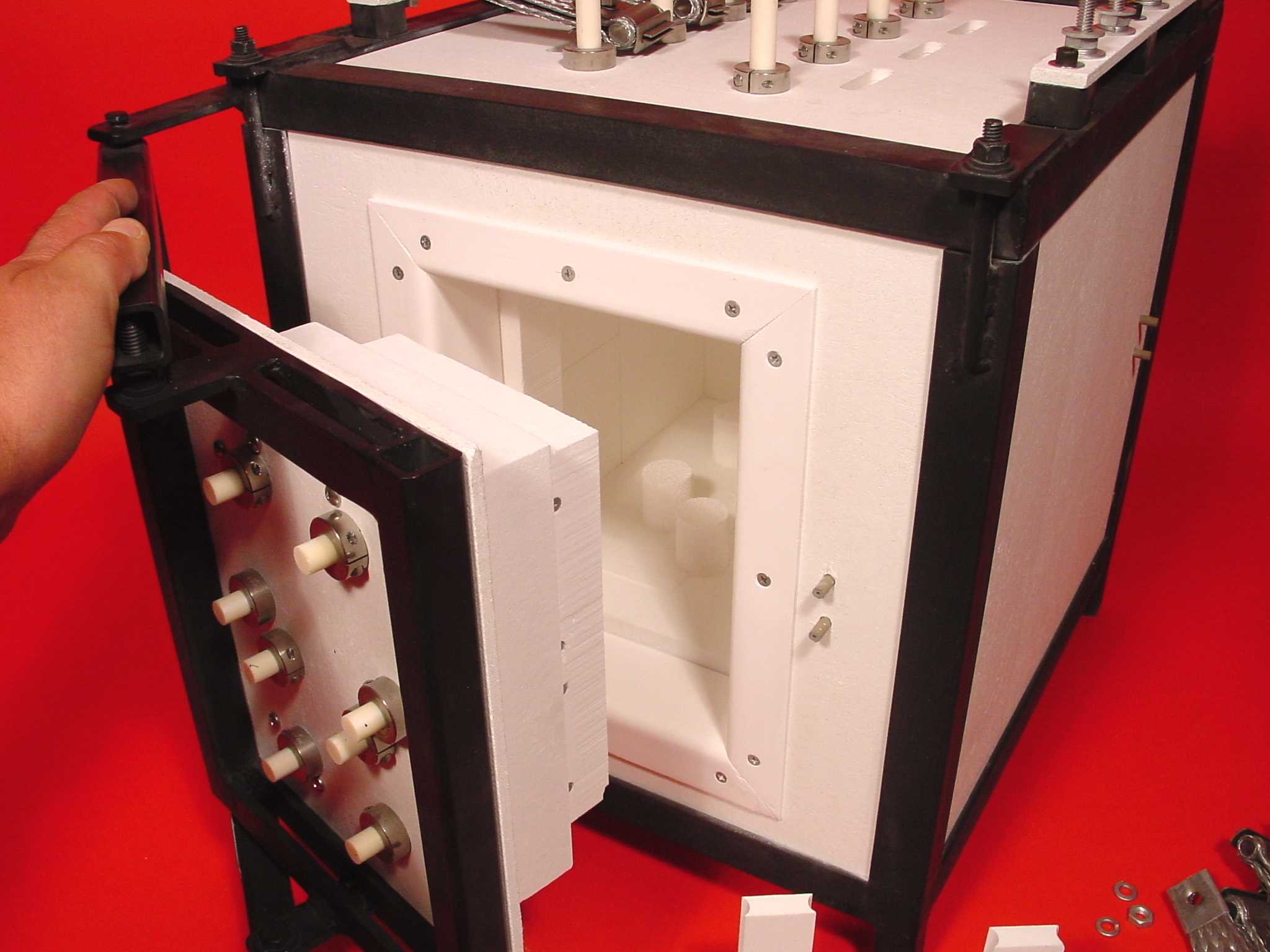

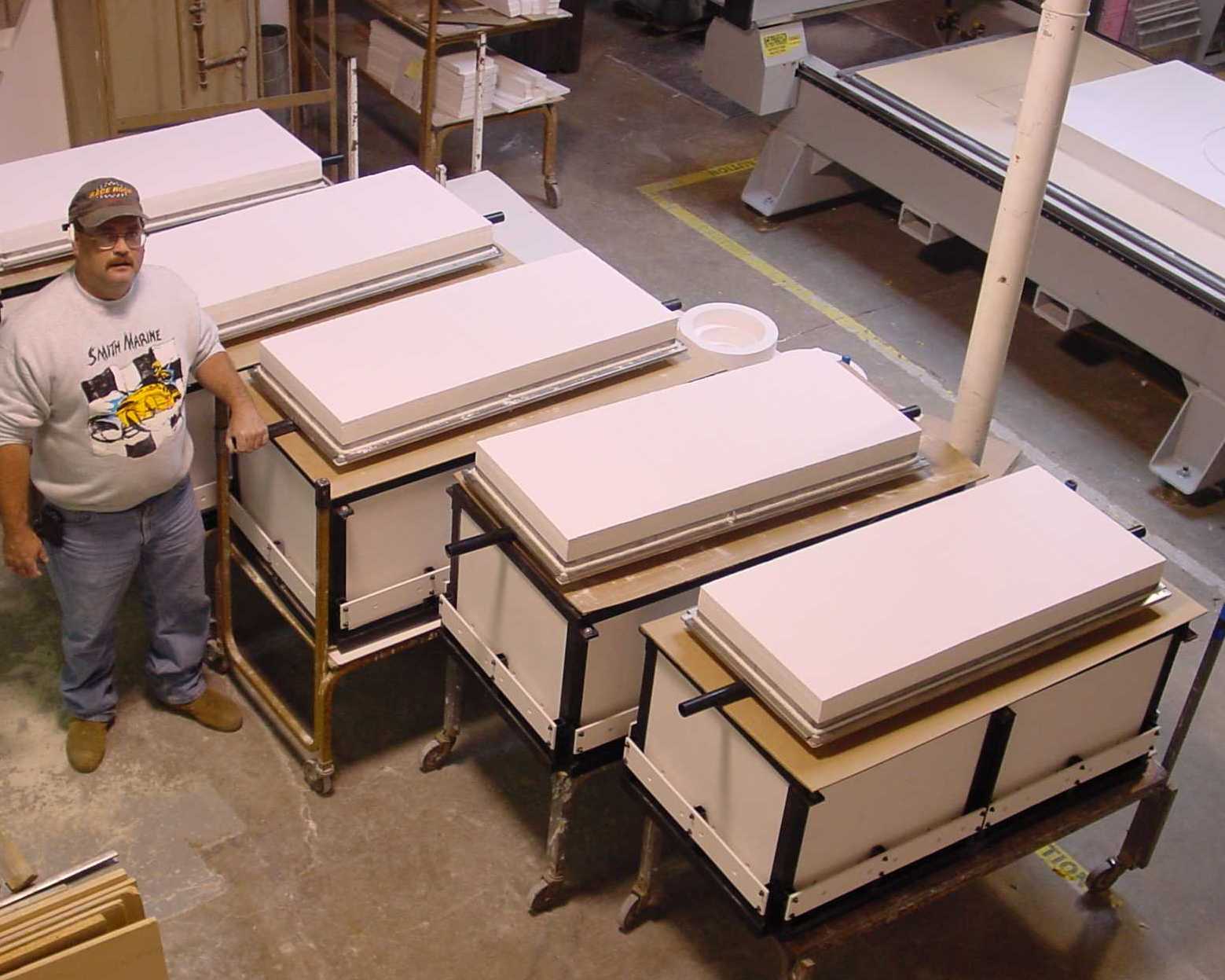

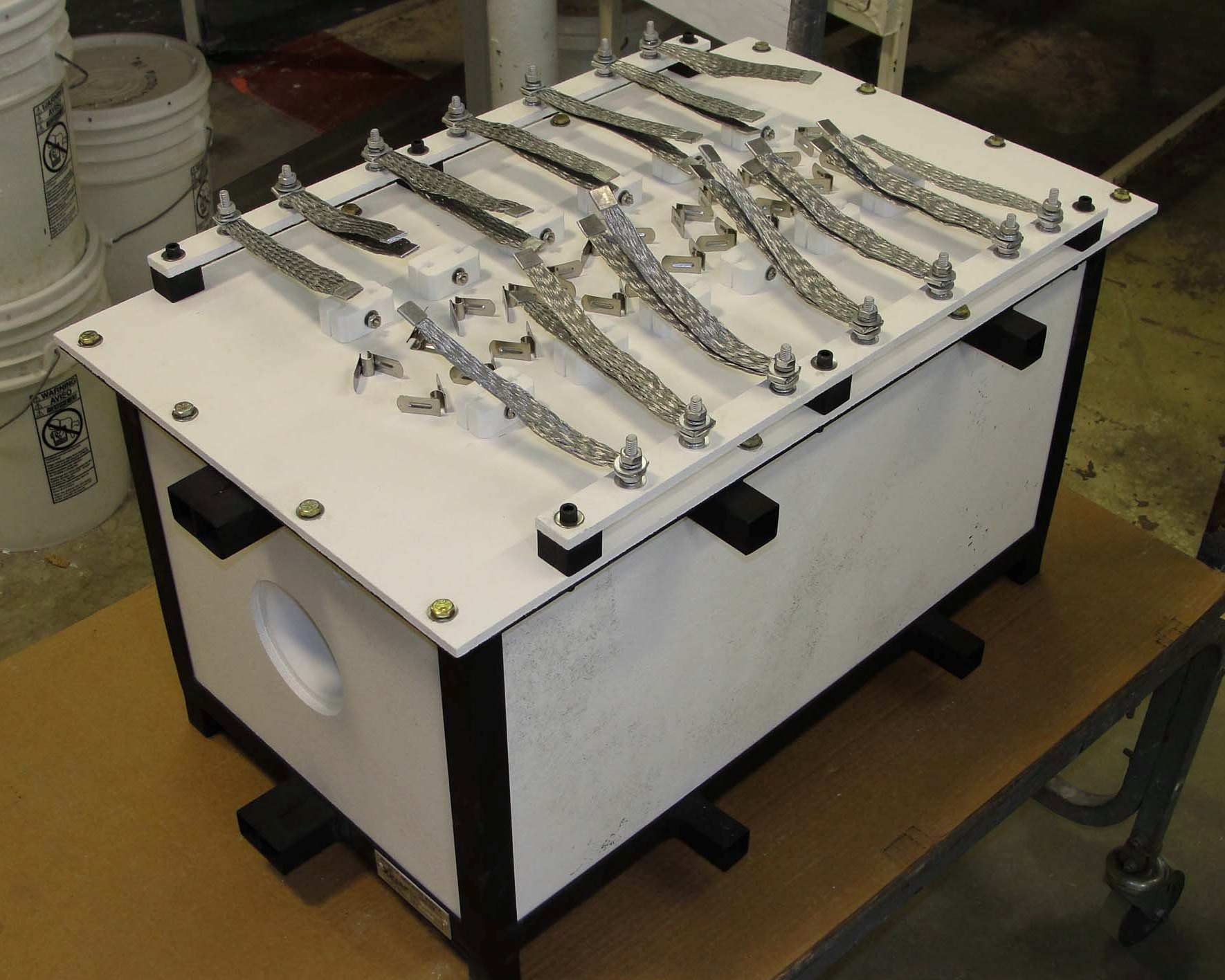

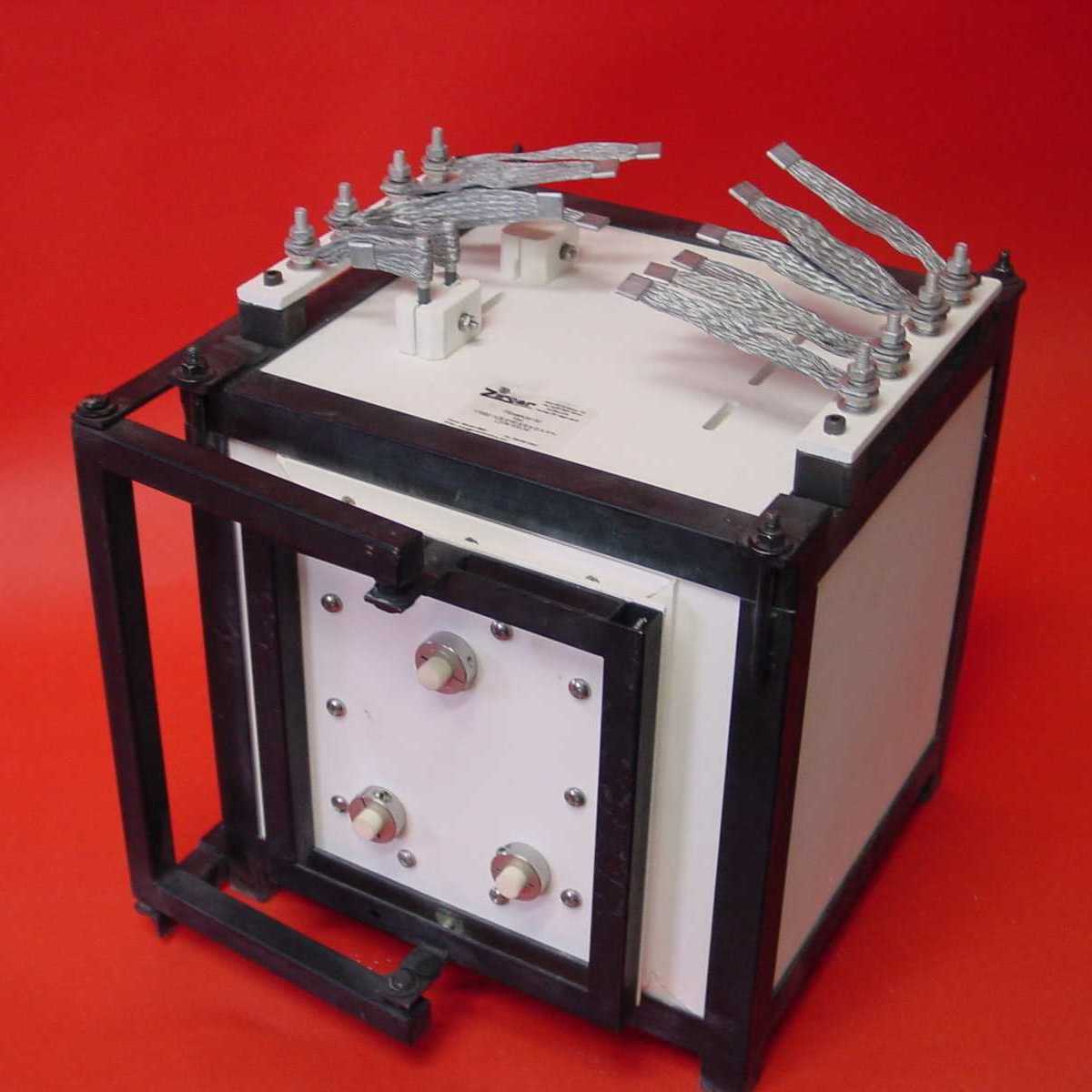

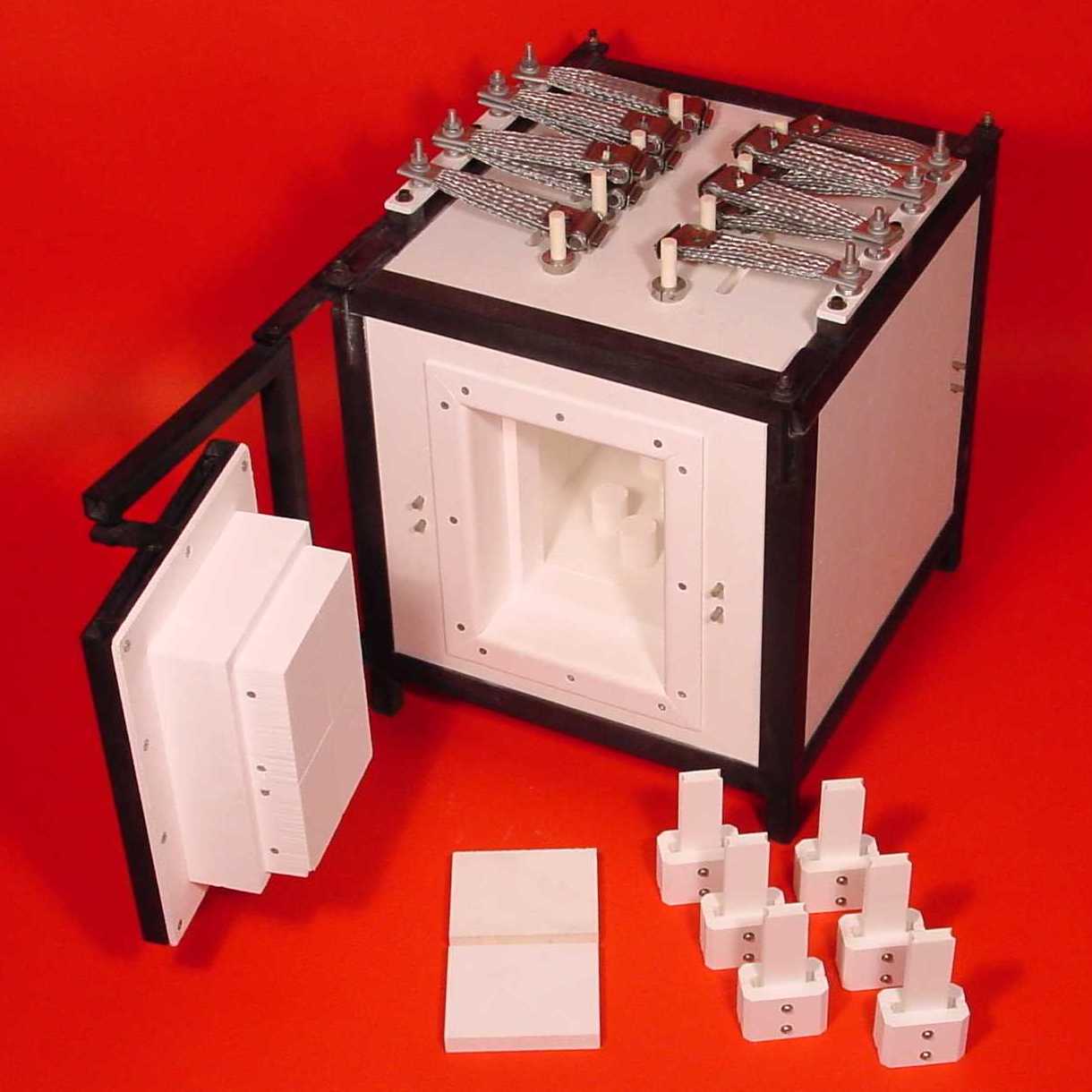

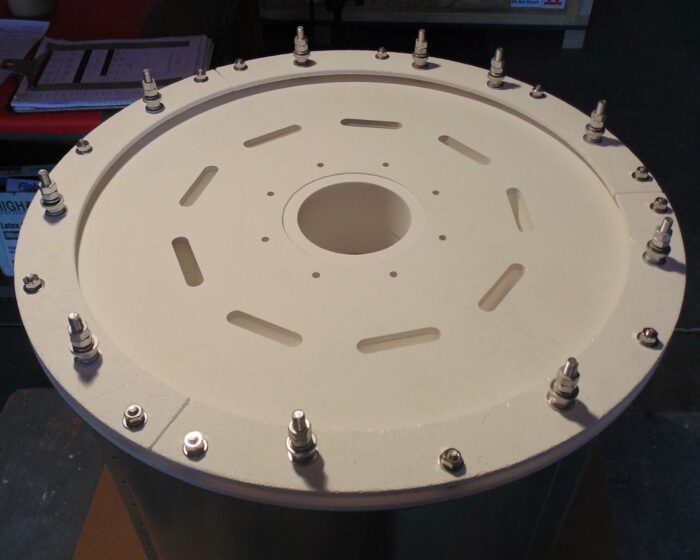

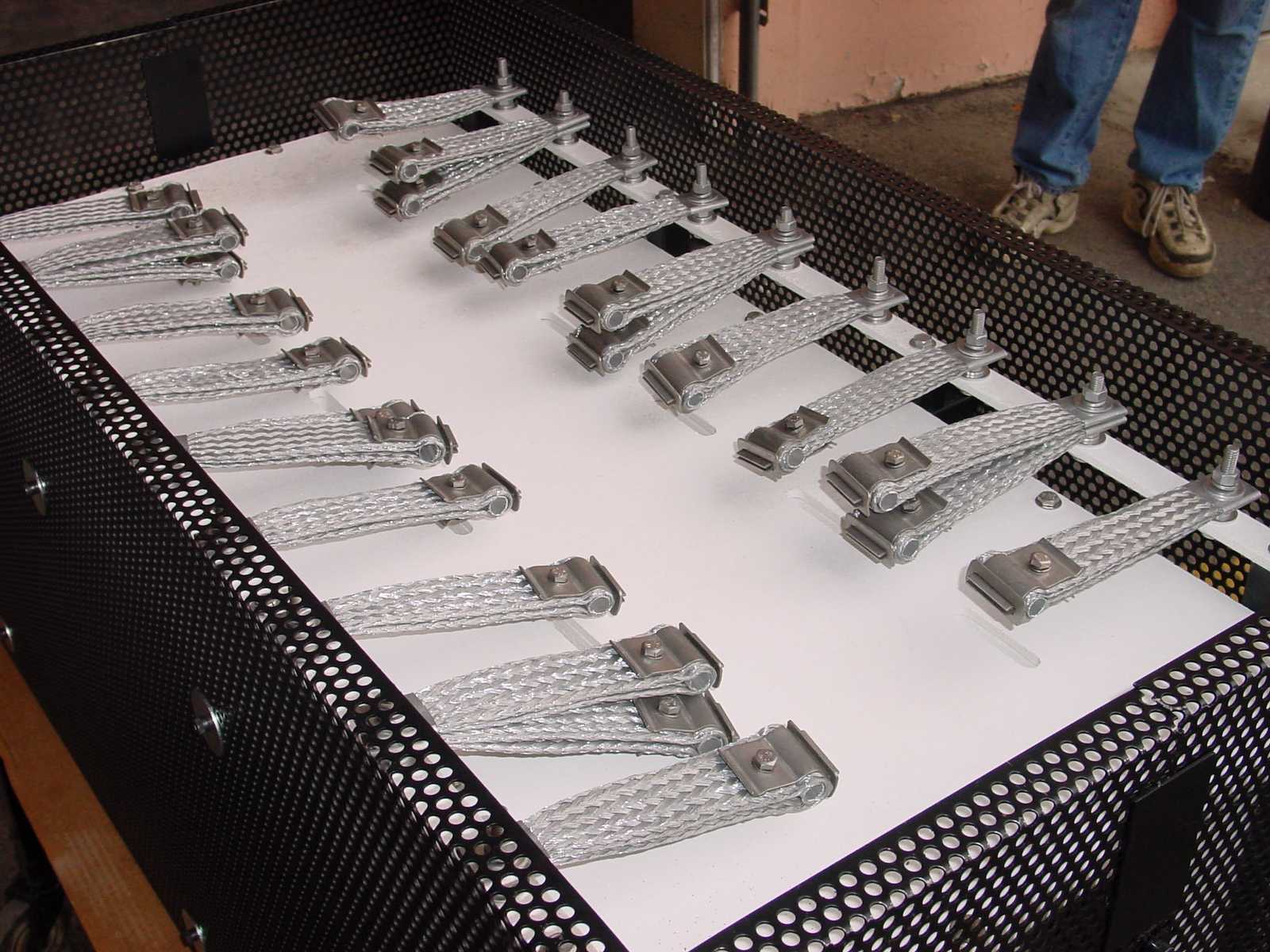

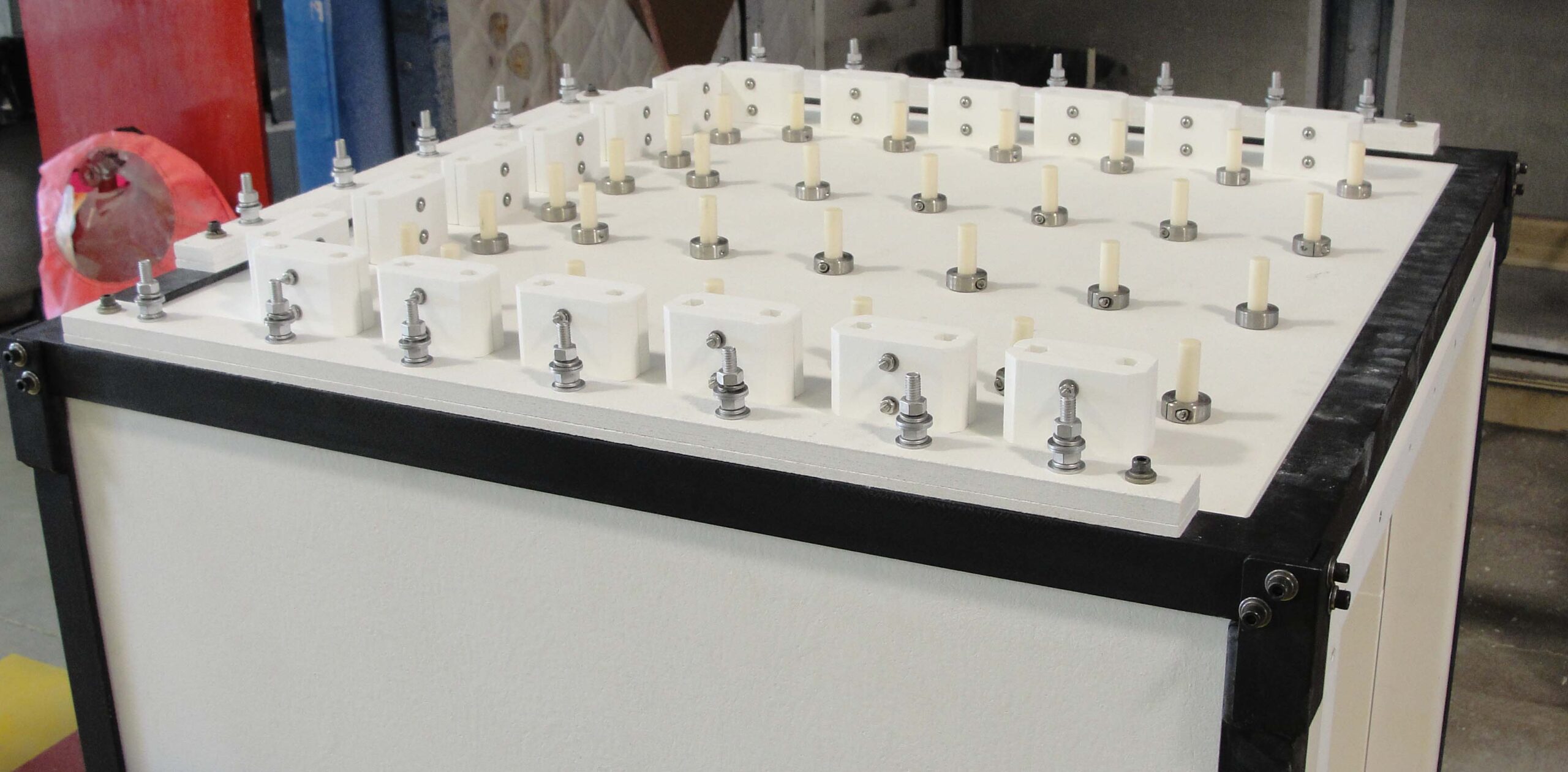

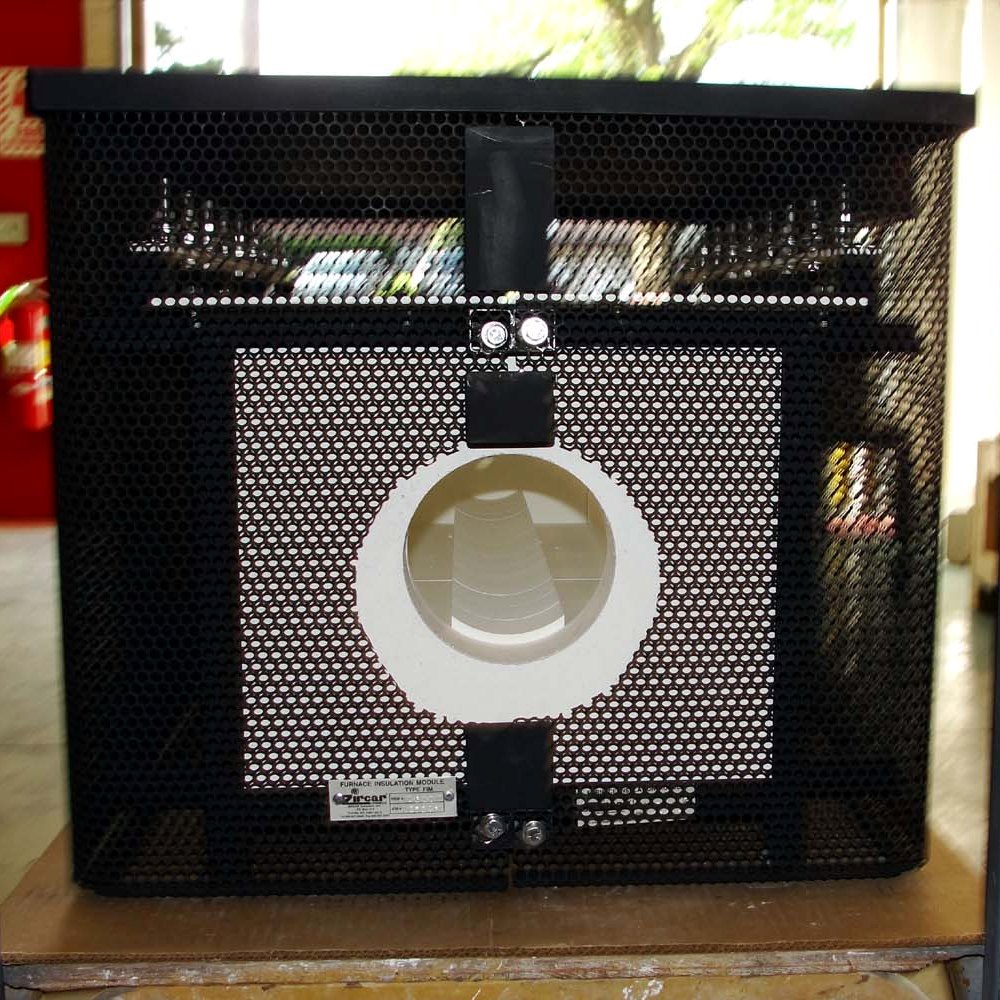

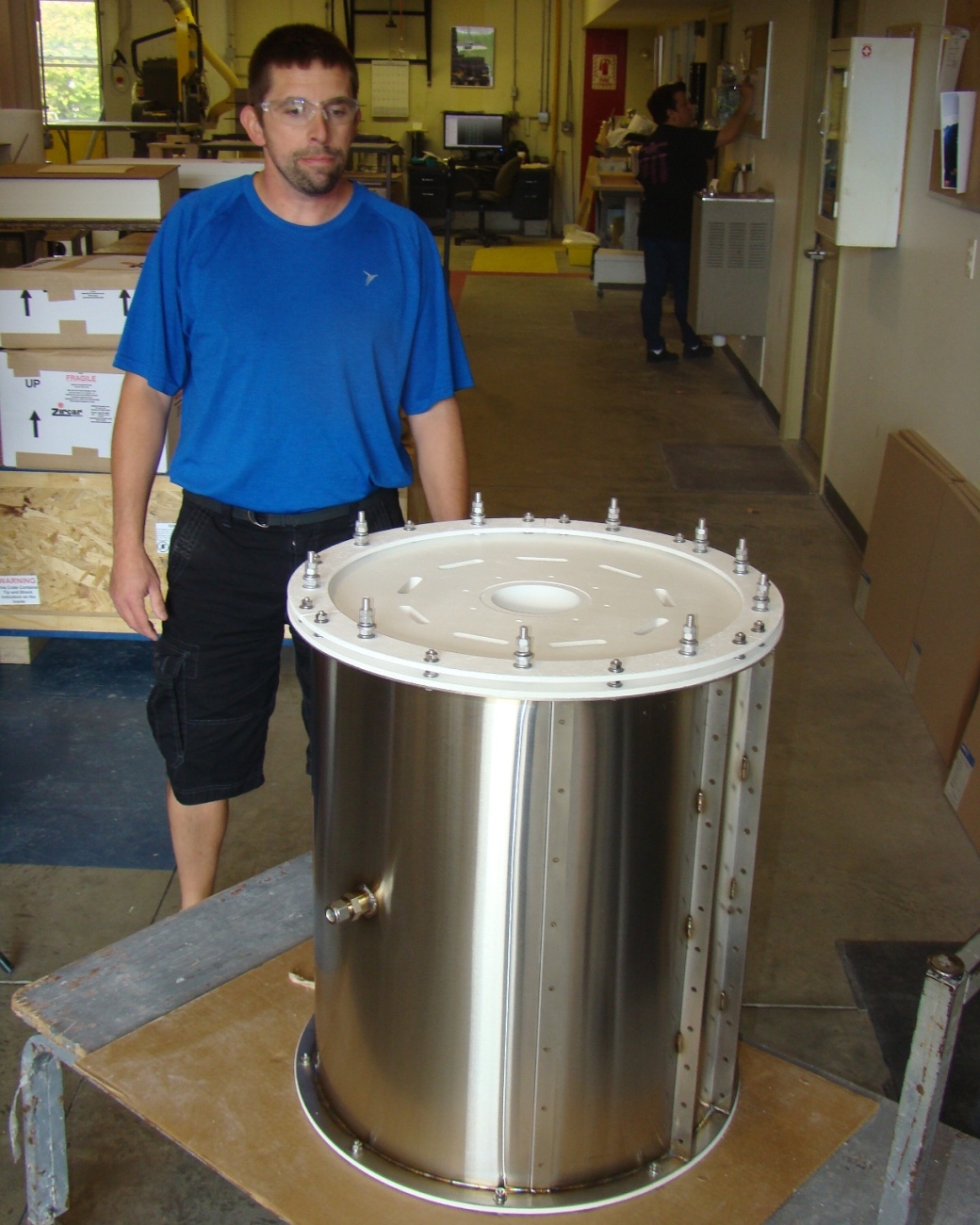

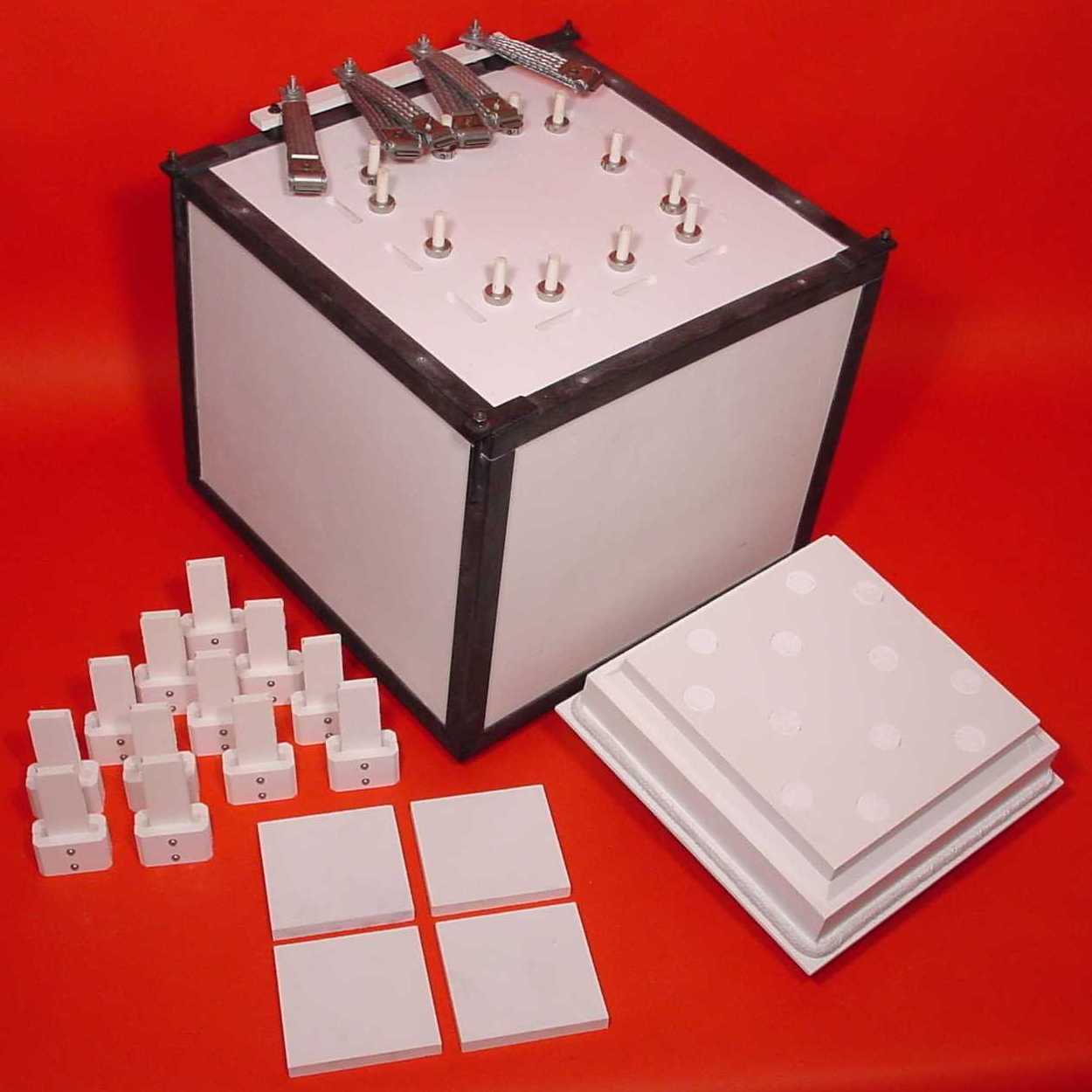

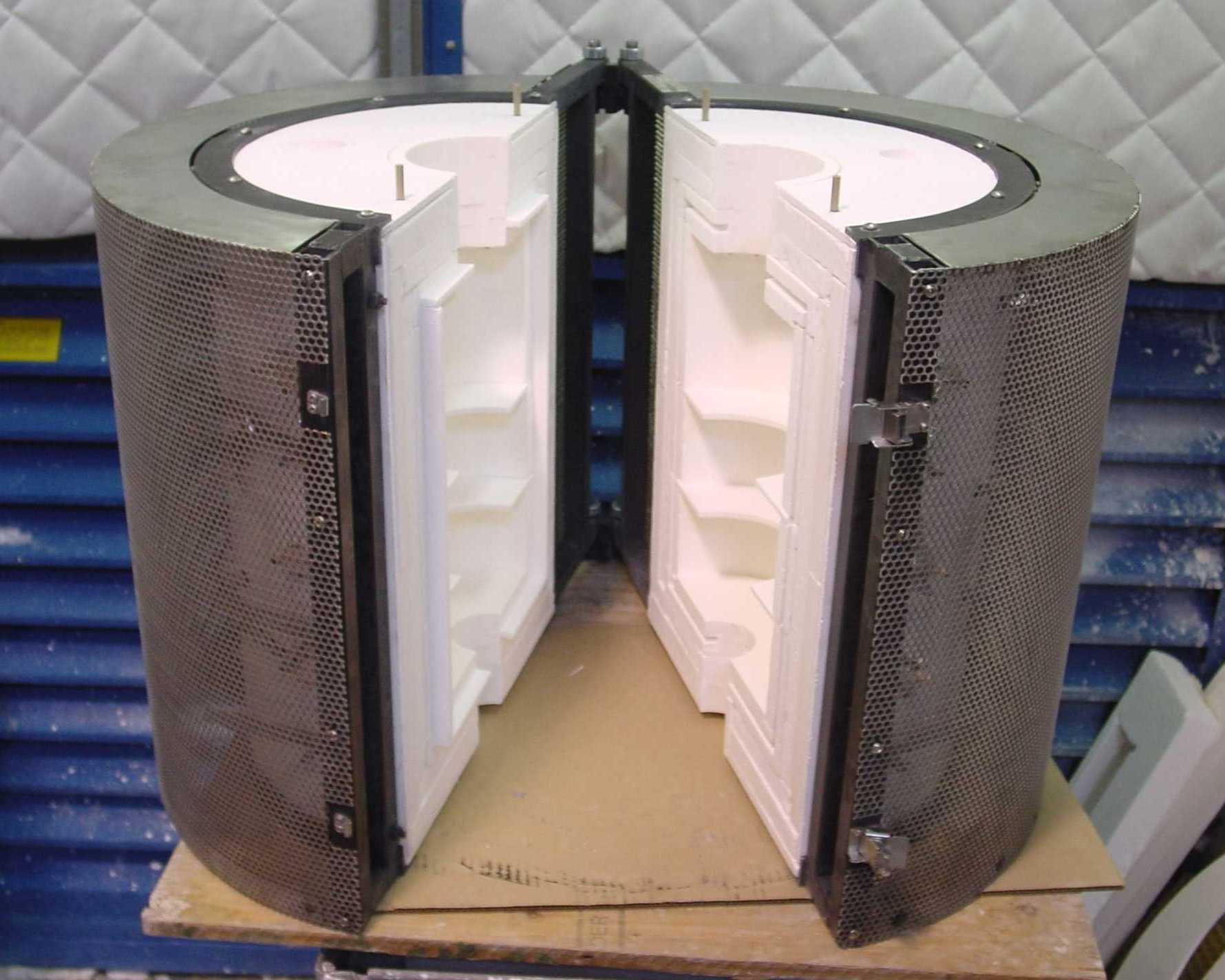

ZIRCAR Ceramics’ Furnace Insulation Modules Type FIM are engineered, pre-assembled insulation systems that provide superior performance in rapid-cycle low-mass furnace applications. FIM Furnace Insulation Modules enable OEM Thermal Process Equipment Manufacturers as well as End User Customers to solve their most unique and challenging furnace chamber applications. FIM Modules are designed and manufactured of a layered and reinforced system of premium grade ZIRCAR Ceramics fibrous ceramic insulation materials encased in an industrial grade shell.

1700°C (3100°F) rated FIM systems incorporate a reinforced hotface layer of ZIRCAR Ceramics’ Alumina Type SALI – with some applications as high as 1740°C (3164°F) – In Air.

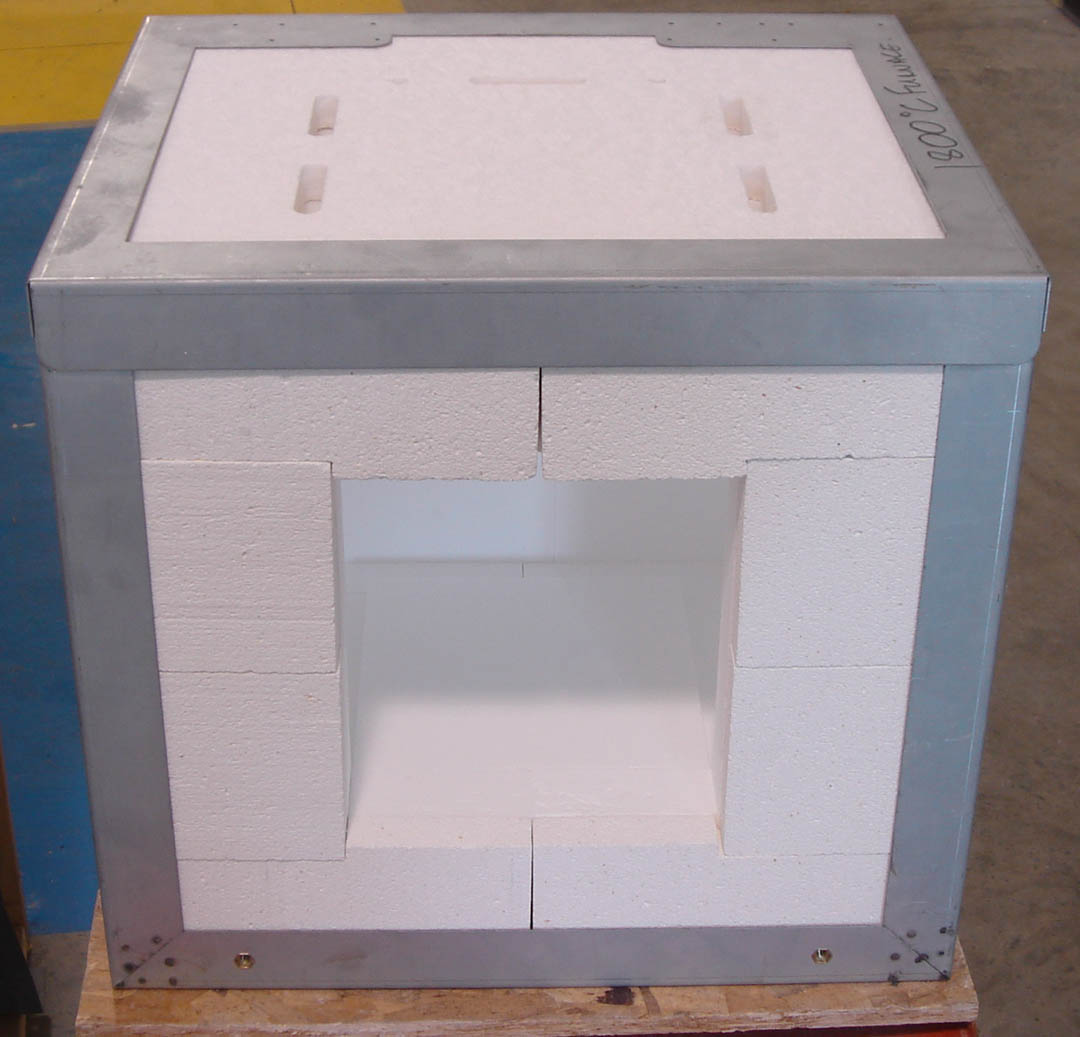

1800°C (3272°F) rated FIM systems use a ZIRCAR Ceramics’ Alumina Type SALI-2 hot face layer – with a maximum application temperature of 1825°C (3317°F)- In Air.
